Application Engineering / Purchasing guide
A paddle-component enquiry should identify the blade, shaft and any connection hardware as an assembly. Explain whether you need loose components or a finished paddle and provide the controlled geometry. Product appearance alone does not define the joint, orientation or application requirements.
Catalogue reference image. Confirm the quoted configuration against the agreed drawing.
Define the component boundaries
State what the supplier is expected to provide: blade shell, shaft, connector or assembled product. Identify the matching components supplied by others. This avoids a quotation that covers a visually similar object but omits a critical interface or finishing operation.
Show orientation and engagement
Provide the mating dimensions and the intended relationship between the blade and shaft. If adjustment or disassembly is required, show the relevant mechanism and access. Keep the connection drawing linked to the blade and shaft revisions so a later change can be reviewed as an assembly.
Plan acceptance for the intended use
Agree fit, finish and application-specific verification requirements through the responsible design process. Define which configuration the sample approval covers. Separate a display sample from a component approved for its intended service, and request the records needed to support that distinction.

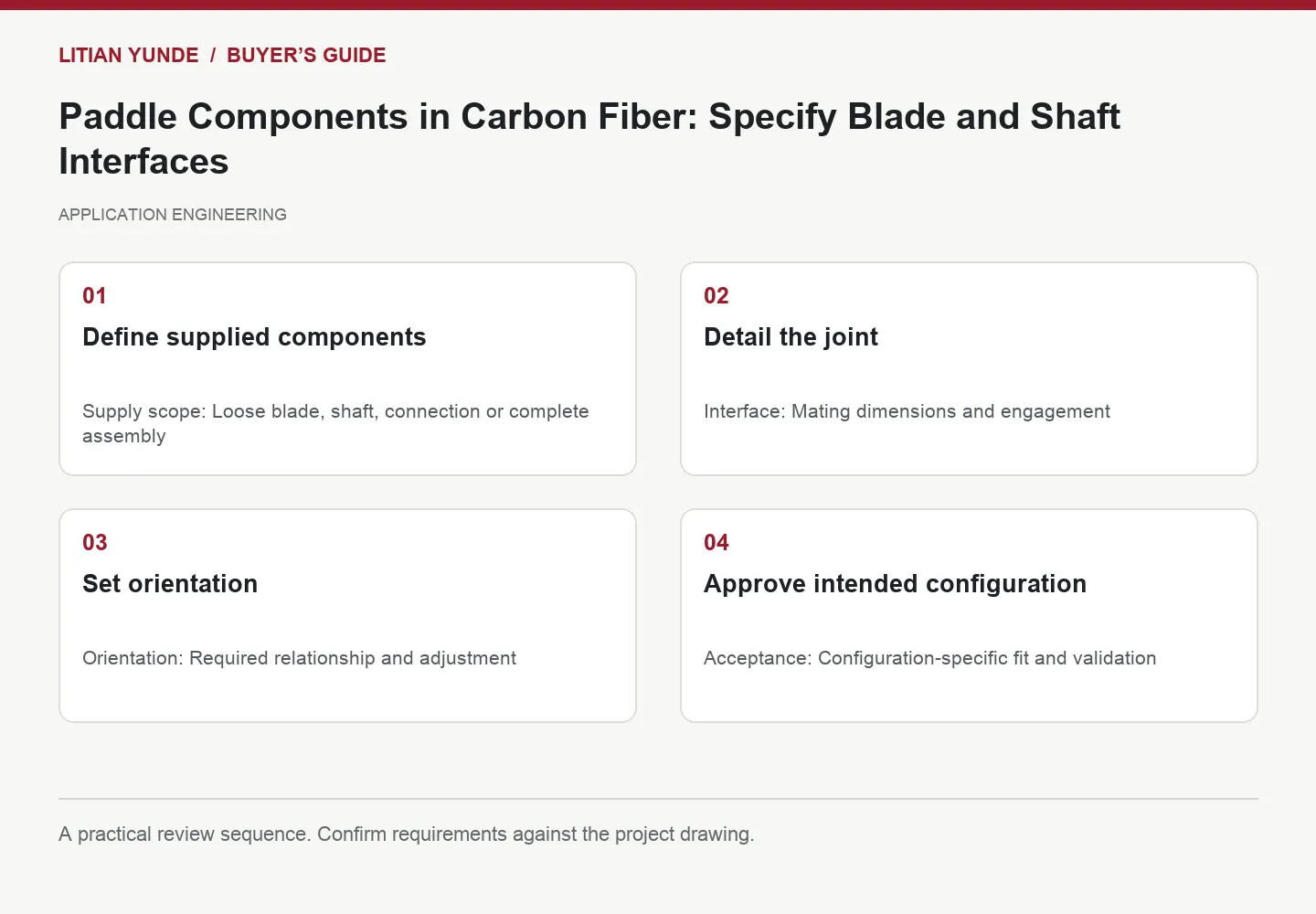

Information to include in your enquiry
| Review item | Information to provide |
|---|---|
| Supply scope | Loose blade, shaft, connection or complete assembly |
| Interface | Mating dimensions and engagement |
| Orientation | Required relationship and adjustment |
| Acceptance | Configuration-specific fit and validation |
Frequently asked questions
Can a blade photo define shaft compatibility?
No. The mating interface needs dimensions and a controlled reference.
Does a finished appearance establish suitability for every water sport?
No. The intended application and applicable verification requirements must be identified.
Discuss your carbon fiber component
Send your drawing revision, intended application, quantity and acceptance requirements to Litian Yunde for a project review.
