Component overview

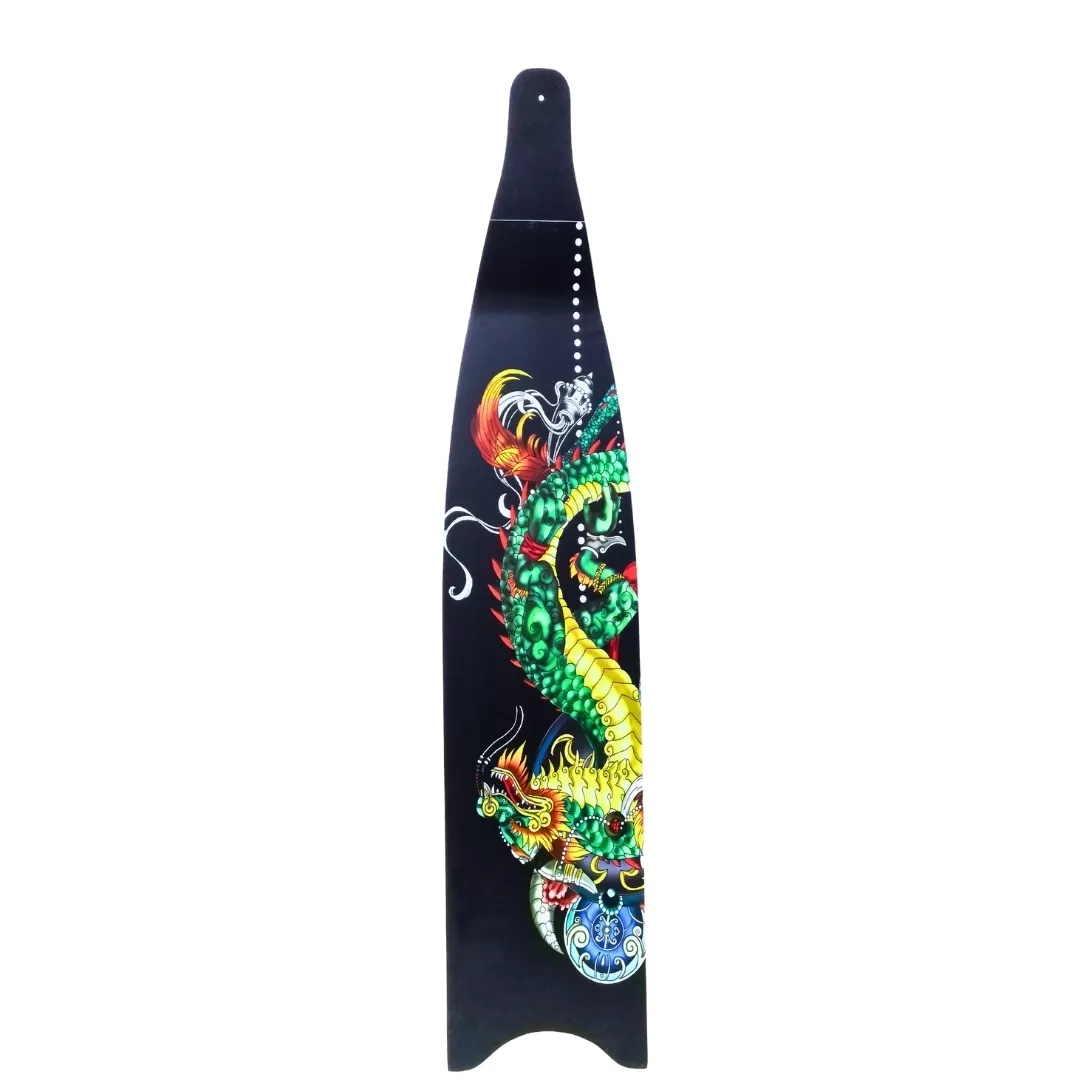

Long fin-blade reference for a custom watersports component. Define blade geometry and the foot-pocket connection before requesting a production quotation.
Connect the shell or component to the finished product
Identify the surfaces that contact the user or the contents, then show the fittings, closures and supports. Clarify whether the enquiry covers the carbon fiber component or a larger assembly.
Details to include in your enquiry
| Feature | Information to provide |
|---|---|
| Blade outline | Specify blade length, width, taper and side profile. |
| Foot-pocket interface | Identify the foot pocket and show how the blade is retained. |
| Finish or graphics | Mark visible faces, edge finish and artwork placement. |
| Design verification | State use conditions and the verification required for the blade and pocket combination. |
Sample review and acceptance
Agree fit, finish and supplied accessories before sample review. Intended-use verification belongs to the actual configuration, including any lining, hardware or equipment added to the component.
Separate sample and production quantities, identify the governing drawing revision, and list the inspection records you need. If a feature is not yet defined, mark it for discussion before quotation.
Questions about this component
Can the reference be adapted to my drawing?
Submit the drawing and highlight differences from the pictured reference. Geometry, material construction, finish and supplied hardware are reviewed together for the requested configuration.
What is included in the quotation?
Ask for the carbon fiber component, tooling where relevant, finishing, hardware, inspection and packing scope to be listed clearly. A reference image does not define every supplied item.
Product reference images. Dimensions, construction and supplied items are defined by the agreed drawing and quotation.
