Tack concerns how a prepreg adheres during handling; drape concerns how it accommodates a shape. A material can be described on both bases. Neither term alone establishes the cured component’s properties or suitability for a particular mould geometry.

A vacuum-bag leak check evaluates a process setup under its defined procedure. It does not directly measure the void content, mechanical properties or acceptance of the cured laminate. Keep the setup record and finished-part evidence separate.

Breathing and bleeding describe different process functions: providing an air-evacuation path and absorbing resin where the process requires it. A process consumable can have a defined role in either or both. Specify the actual product and arrangement rather than assuming that similar-looking fabrics are interchangeable.

An opening in a carbon fiber shell may be formed during moulding, trimmed afterward or made through a combined route. The finished opening still needs a dimensional and surface definition. Discuss the proposed route without assuming it produces an identical edge condition.

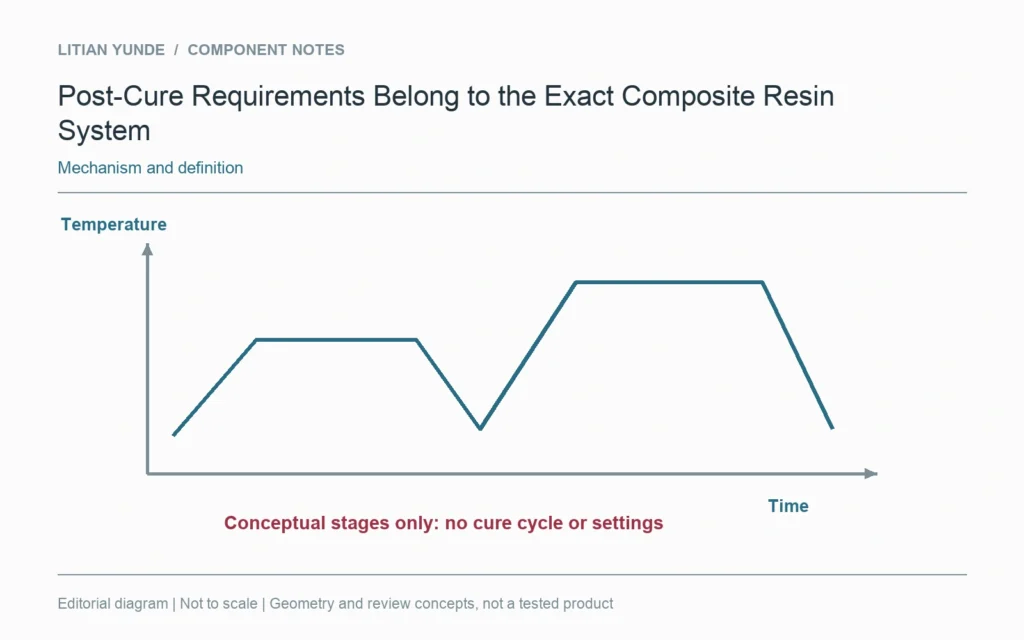

A post-cure is a specified additional stage in a material’s processing definition, not a generic improvement to apply to every carbon fiber part. Review it against the exact resin system, supplier guidance and component requirements. Keep the actual processing record distinct from a proposed schedule.

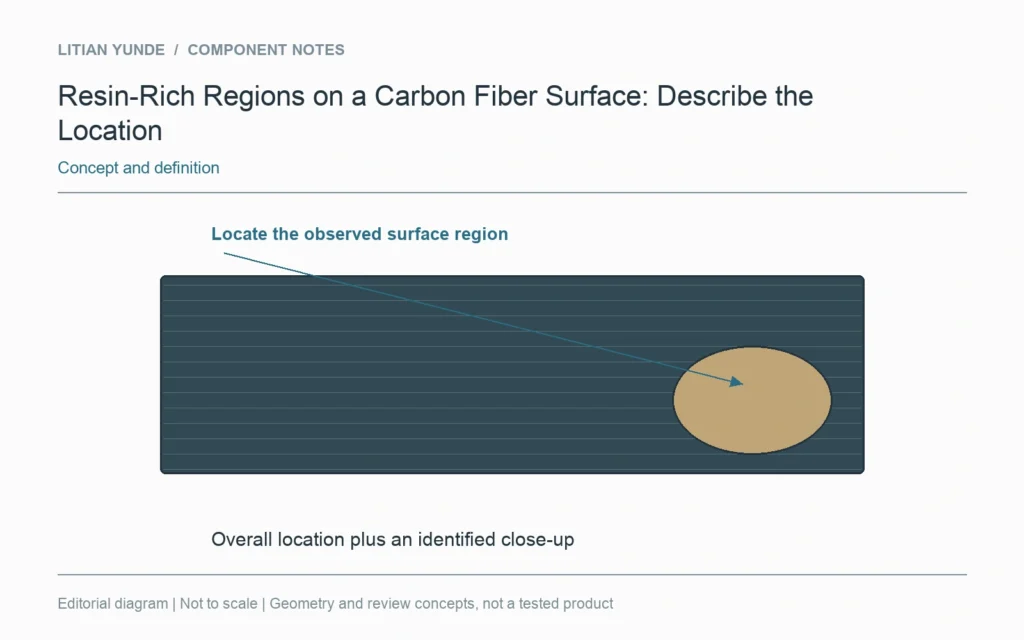

A local area dominated by resin is not the same observation as an empty region inside a laminate. When discussing a surface feature, describe its location and appearance before naming a cause or deciding whether it is acceptable.

Peel ply is a removable fabric that can leave a textured composite surface. Release film separates process layers and may have a defined perforation pattern. They have different roles, so a request for a “peelable layer” is too vague to identify the required process or delivered condition.

In a process using a rigid mould on one side and a vacuum bag on the other, the two faces experience different contact conditions. Calling both faces “carbon finish” can hide that distinction. Identify which face will be visible and how the other face will be used.

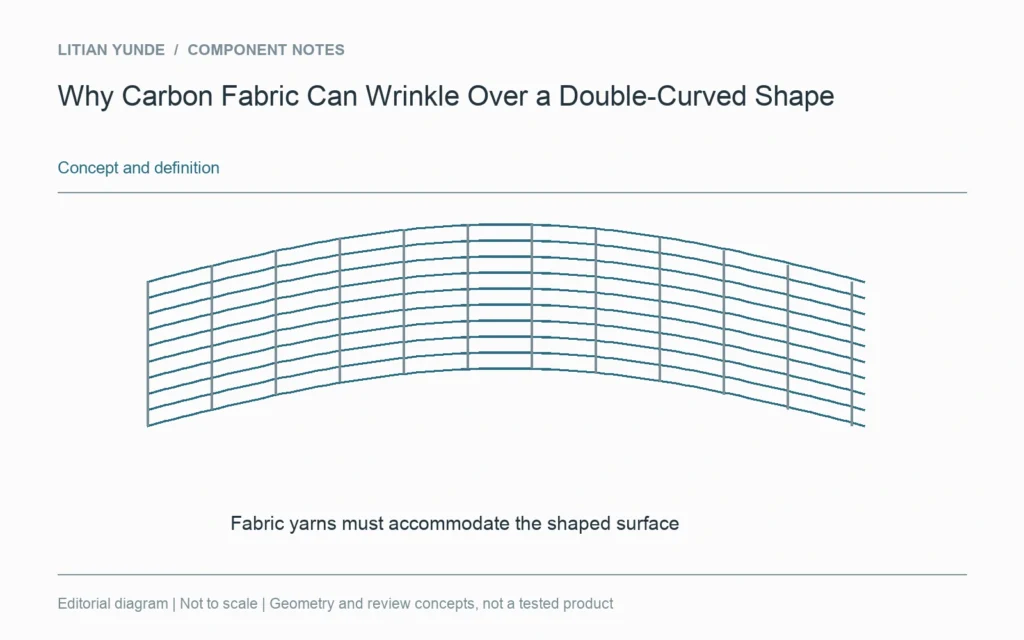

A piece of fabric that lies flat on a table does not automatically follow every double-curved surface without changing its yarn arrangement. Tight corners and changing curvature make forming a practical design question, especially where a continuous visible weave is requested.

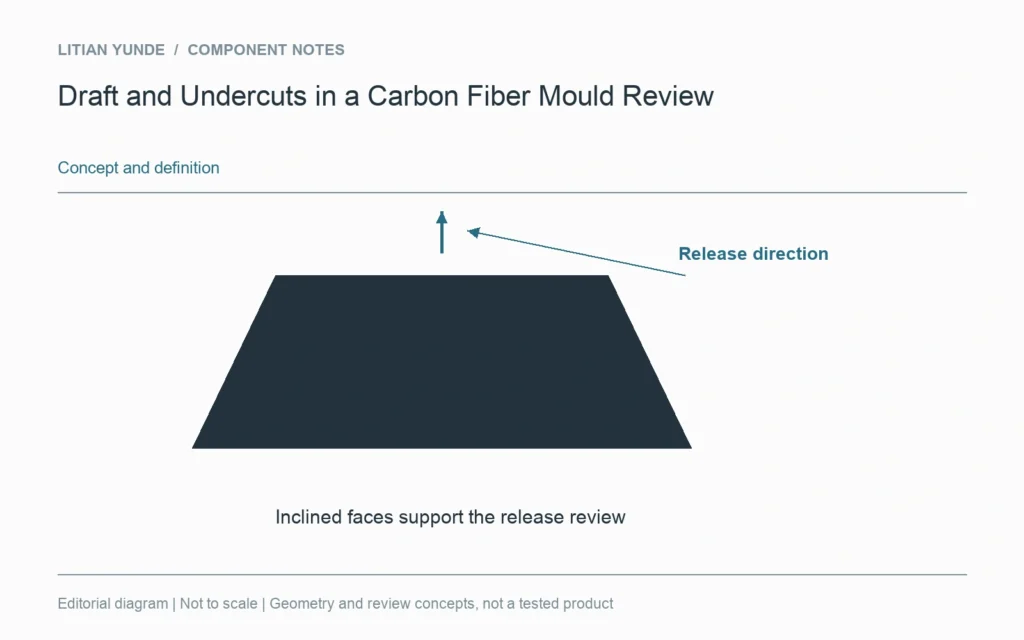

A finished shape has to leave its manufacturing tool. Draft is a geometric feature related to that release direction; an undercut can obstruct the path. Review the proposed tool and release movement together before assuming a smooth CAD shape is straightforward to mould.

Un prototipo riuscito costituisce il punto di partenza per il lancio in produzione, non un pacchetto completo di consegna a sé stante.

Un campione di superficie diventa utile quando ha un'identità, uno scopo concordato e condizioni di osservazione ben definite.
