Product overview

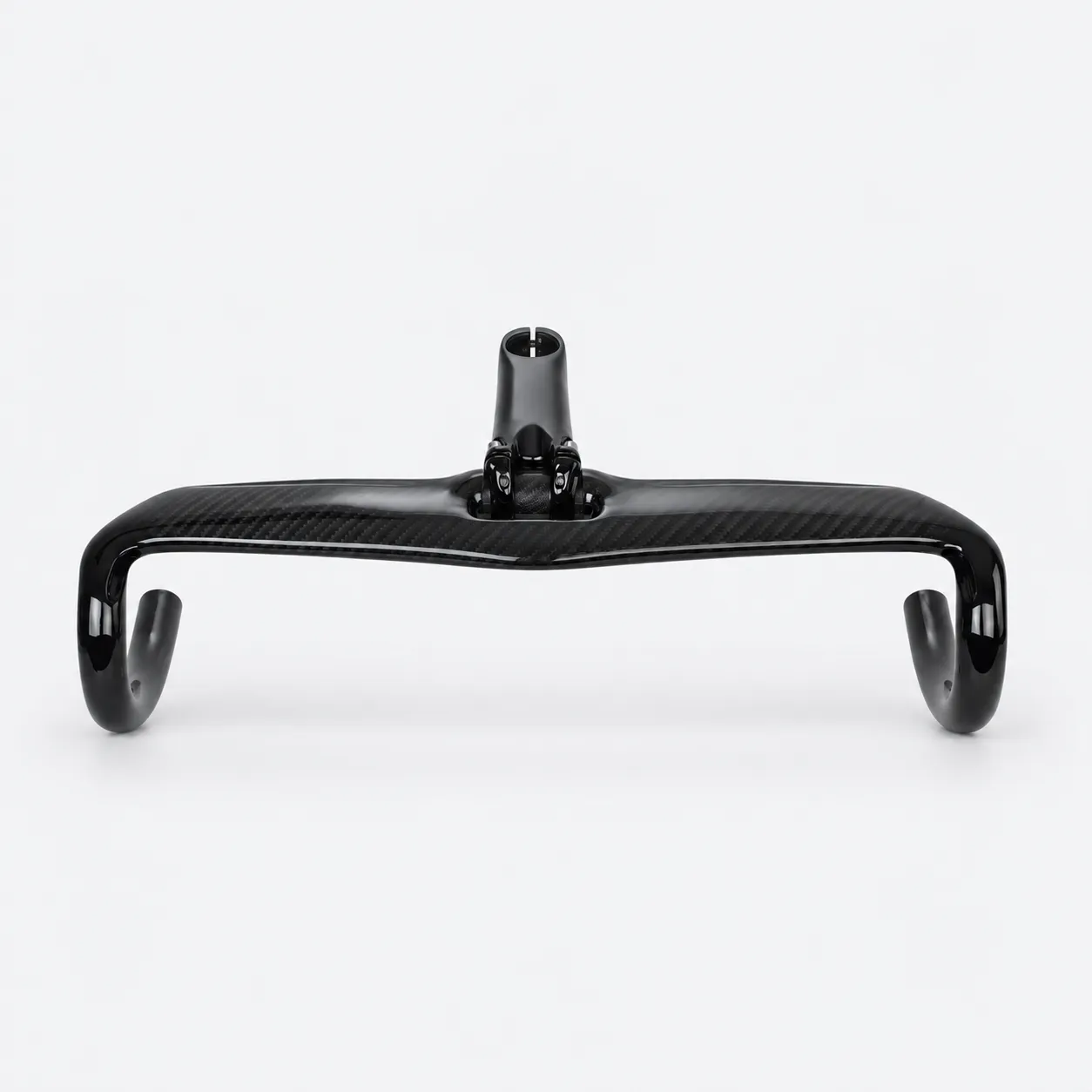

Integrated drop-bar cockpit reference based on the supplied photograph. Confirm geometry, steerer interface and control routing for the proposed bicycle build.
Define your configuration
Use the reference image to start the discussion, then identify the actual component, mating assembly and supplied scope. Dimensions, material construction, quantities, finishes and inspection requirements are confirmed for the individual project.
Information for a quotation
| Requirement | What to send |
|---|---|
| 1. Cockpit geometry | Provide the project requirement or reference for review. |
| 2. Steerer interface | Provide the project requirement or reference for review. |
| 3. Controls and routing | Provide the project requirement or reference for review. |
| 4. Configuration-specific verification | Provide the project requirement or reference for review. |
Review and acceptance
Provide the governing drawing revision, intended use, requested quantity and any required inspection or application-specific verification. A product photograph does not establish a load rating, certification, fitment range or delivery commitment.
Catalogue reference. The quoted configuration is defined by the agreed drawing and component scope.
