Component overview

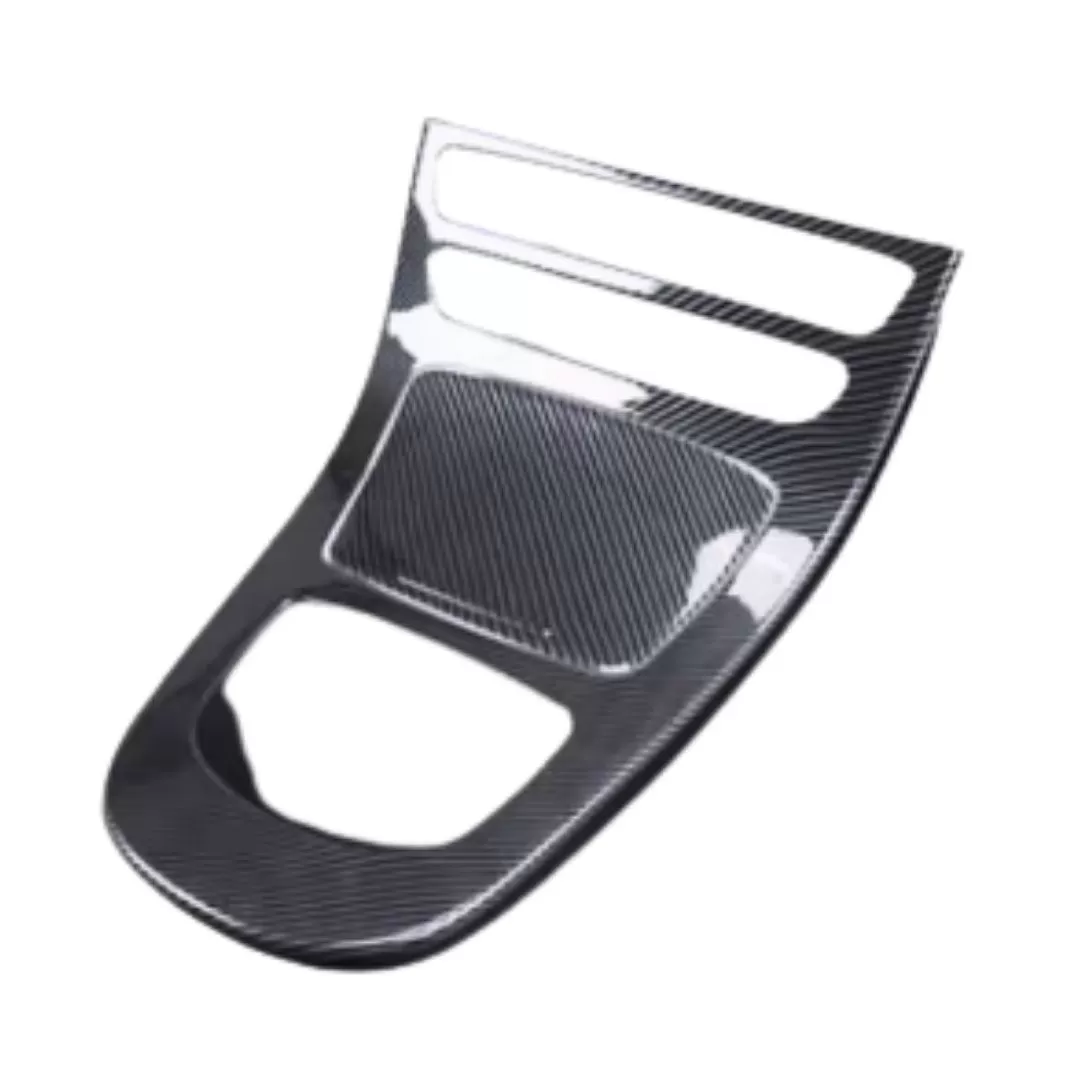

Centre-console trim reference with shaped openings. Exact fitment and control clearances must be established against the identified interior assembly.
Fit the surrounding vehicle assembly
Begin with the mating panel or assembly, including the space behind the visible surface. A drawing of the outside shape should be accompanied by mounting, opening and service-clearance details.
Details to include in your enquiry
| Feature | Information to provide |
|---|---|
| Mating console reference | Identify the exact console assembly and the trim coverage. |
| Opening geometry | Dimension control, display and switch openings against the mating parts. |
| Attachment | Specify clips, fasteners or adhesive zones and removal access. |
| Appearance zones | Mark visible faces, seam positions and finish-matching areas. |
Sample review and acceptance
Vehicle fitment, heat exposure and any functional performance need to be reviewed for the actual installation. Separate cosmetic finish approval from mechanical and application-specific verification.
Separate sample and production quantities, identify the governing drawing revision, and list the inspection records you need. If a feature is not yet defined, mark it for discussion before quotation.
Questions about this component
Can the reference be adapted to my drawing?
Submit the drawing and highlight differences from the pictured reference. Geometry, material construction, finish and supplied hardware are reviewed together for the requested configuration.
What is included in the quotation?
Ask for the carbon fiber component, tooling where relevant, finishing, hardware, inspection and packing scope to be listed clearly. A reference image does not define every supplied item.
Product reference images. Dimensions, construction and supplied items are defined by the agreed drawing and quotation.
