Component overview
Tube assembly reference for discussing length, diameters and connection details. Confirm the end interfaces and supplied hardware for the required configuration.
Define the installation, not only the outline
Show where the part sits in the assembly, the features that locate it and the clearances needed for wiring and service. Use common datums for mating holes and interfaces.
Details to include in your enquiry
| Feature | Information to provide |
|---|---|
| Inside and outside dimensions | Specify tube inside and outside geometry and clarify which surface controls fit. |
| Finished length | Give the finished end-to-end length and the measurement reference. |
| End interfaces | Show sockets, plugs, collars or fittings at each end and their orientation. |
| Assembly scope | List tubes, connectors and fasteners separately and define assembly and inspection responsibilities. |
Sample review and acceptance
Mark the critical dimensions and identify any separate insulation, inserts or hardware. Agree what is measured on the component and what is checked after assembly.
Separate sample and production quantities, identify the governing drawing revision, and list the inspection records you need. If a feature is not yet defined, mark it for discussion before quotation.
Questions about this component
Can the reference be adapted to my drawing?
Submit the drawing and highlight differences from the pictured reference. Geometry, material construction, finish and supplied hardware are reviewed together for the requested configuration.
What is included in the quotation?
Ask for the carbon fiber component, tooling where relevant, finishing, hardware, inspection and packing scope to be listed clearly. A reference image does not define every supplied item.

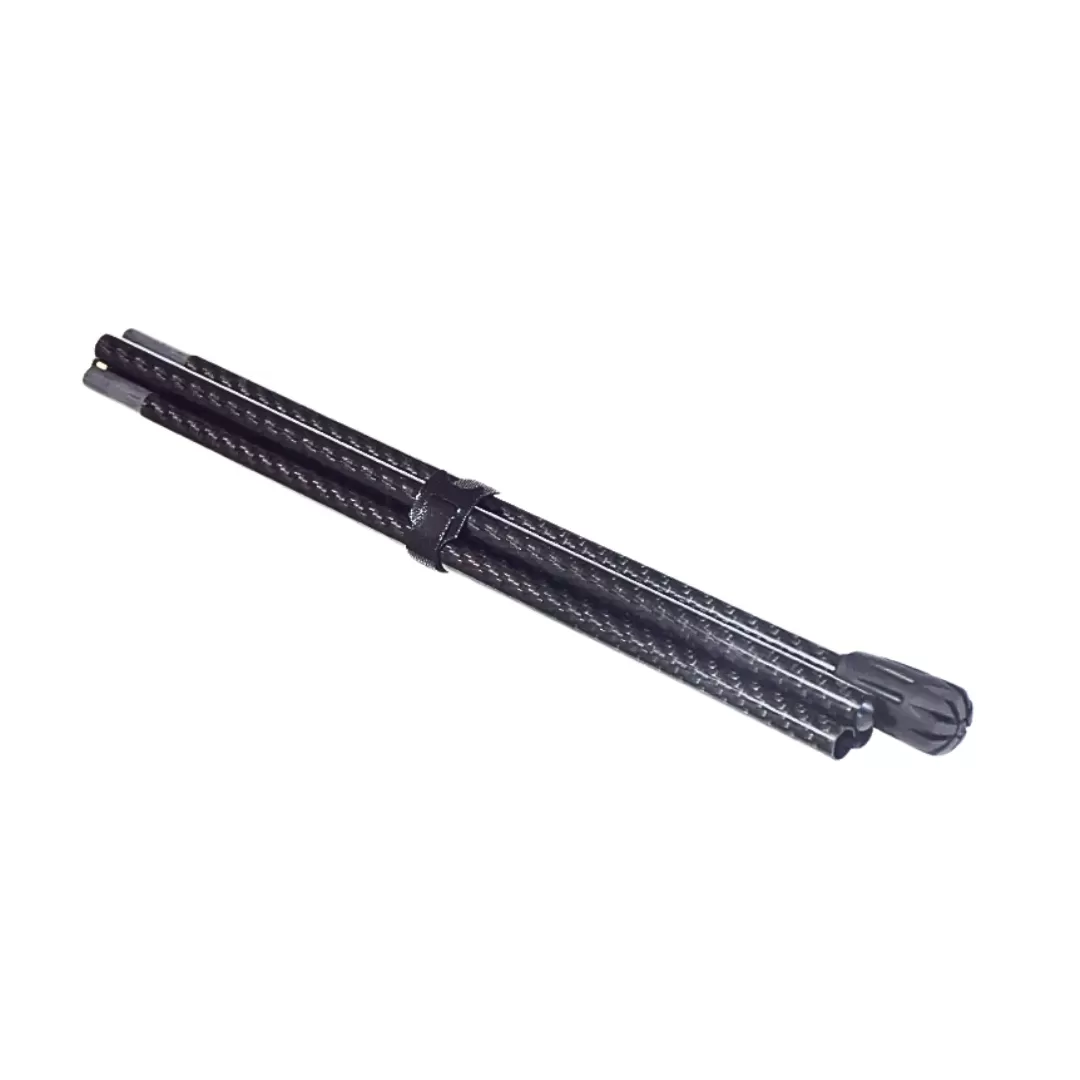

Product reference images. Dimensions, construction and supplied items are defined by the agreed drawing and quotation.
