Component overview

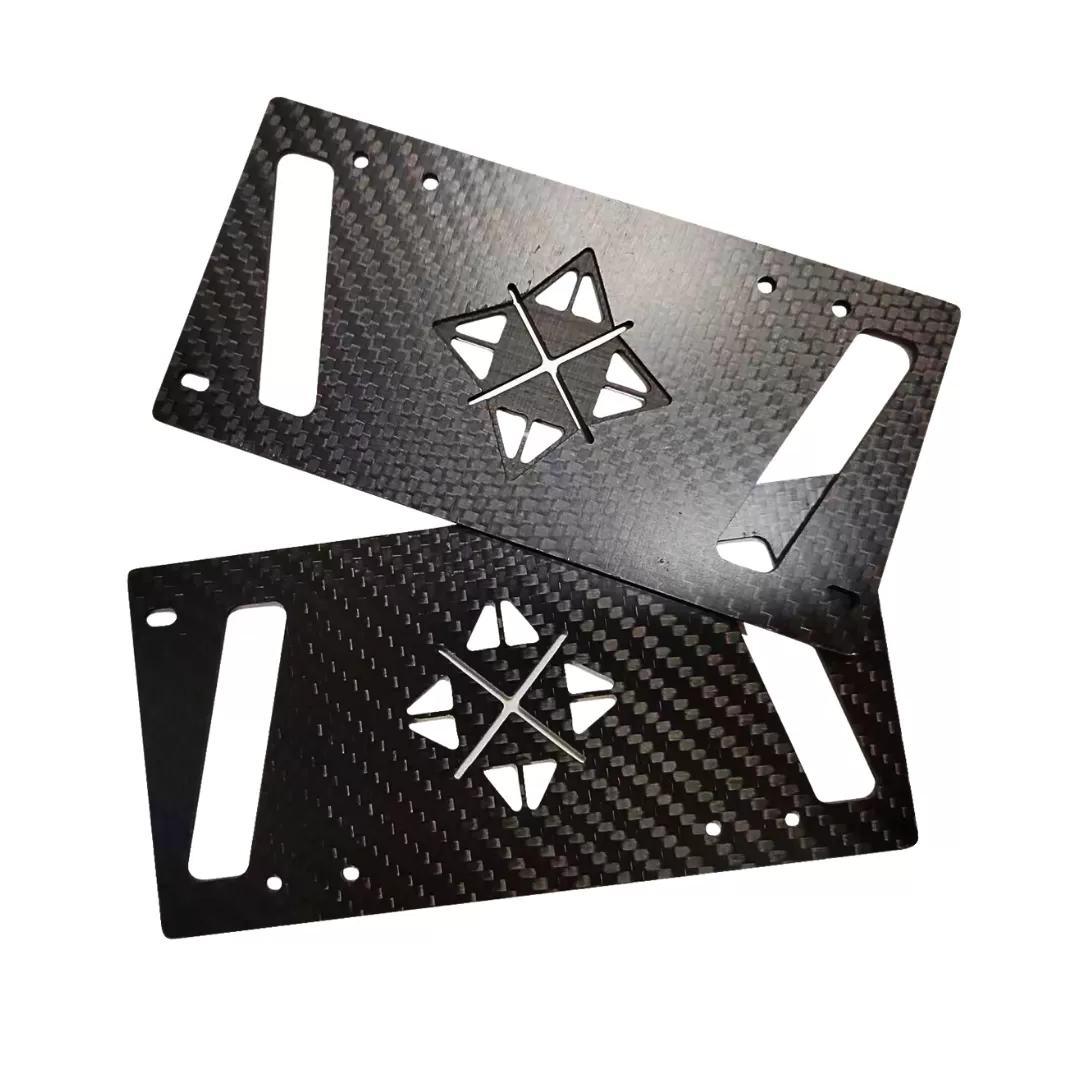

Paired plate reference with slots and perimeter mounting features. Specify the geometry and quantity of each plate rather than assuming the pictured pair is a standard kit.
Define the installation, not only the outline
Show where the part sits in the assembly, the features that locate it and the clearances needed for wiring and service. Use common datums for mating holes and interfaces.
Details to include in your enquiry
| Feature | Information to provide |
|---|---|
| Plate drawings | Provide a drawing for each plate and explain how the two parts form a pair. |
| Slot details | Dimension slot geometry, radii and fastener travel requirements. |
| Matched set requirements | Identify matching, orientation or handedness requirements for the supplied set. |
| Inspection references | State common datums and the features to compare when checking the pair. |
Sample review and acceptance
Mark the critical dimensions and identify any separate insulation, inserts or hardware. Agree what is measured on the component and what is checked after assembly.
Separate sample and production quantities, identify the governing drawing revision, and list the inspection records you need. If a feature is not yet defined, mark it for discussion before quotation.
Questions about this component
Can the reference be adapted to my drawing?
Submit the drawing and highlight differences from the pictured reference. Geometry, material construction, finish and supplied hardware are reviewed together for the requested configuration.
What is included in the quotation?
Ask for the carbon fiber component, tooling where relevant, finishing, hardware, inspection and packing scope to be listed clearly. A reference image does not define every supplied item.
Product reference images. Dimensions, construction and supplied items are defined by the agreed drawing and quotation.
