A carbon fiber probe holder is one part of a measurement setup. A repeatability claim needs to identify the probe, holder, mounting arrangement and repeated operation. It cannot be established from the holder material or from a single dimensional inspection.

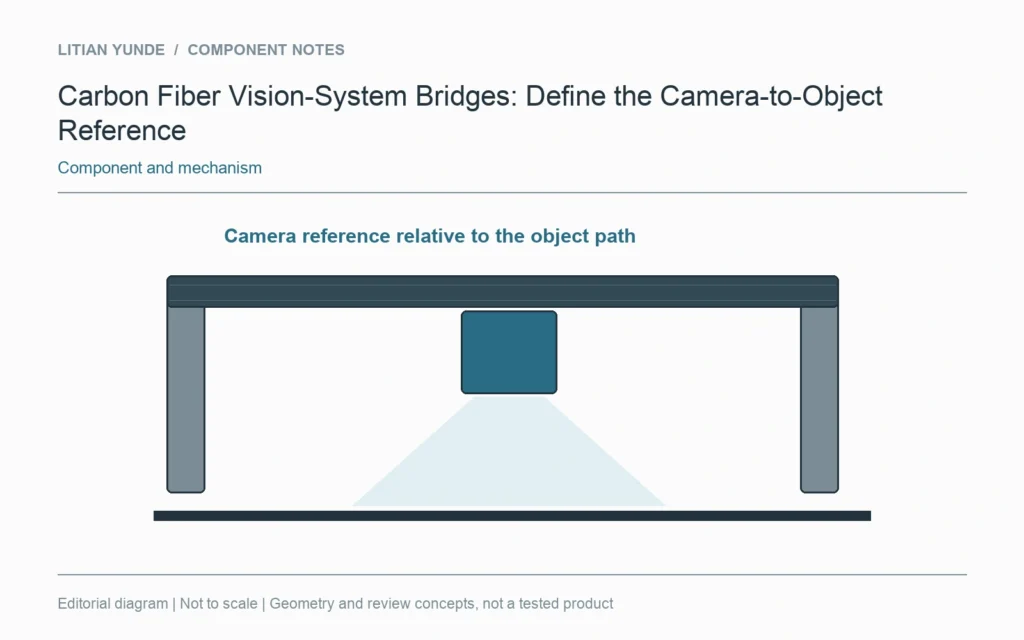

A vision-system bridge positions a camera or sensor relative to the object being inspected. Specify that relationship through the mounts, supports and operating movement. A light carbon fiber bridge is useful only if the complete arrangement meets the application’s positioning requirements.

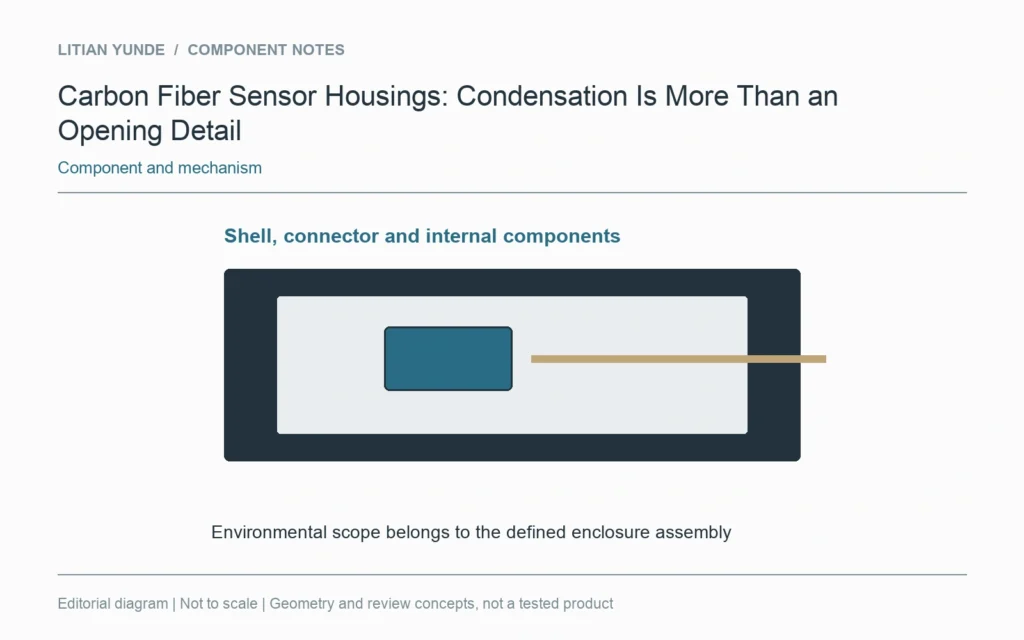

A sensor housing can experience moisture internally even when an external opening appears well protected. The enclosure, seals, internal components and operating environment need a coordinated review. Supplying a carbon fiber shell does not automatically include environmental qualification of the assembled sensor.

A calibration target mounted on a carbon fiber carrier is an assembly. The target pattern, its substrate, attachment and support condition all belong in the definition. A flat carrier inspection alone does not establish the accuracy of the complete calibration artifact.

A carbon fiber support can carry a vacuum-gripper assembly without being the vacuum manifold or sealing surface. Define what the proposed component actually supplies. The structural frame, suction devices, tubing and vacuum controls perform different jobs.

A robot gripper finger has at least two interfaces: the connection to the actuator and the contact with the handled item. A carbon fiber finger enquiry should define both. If the contact pad is replaceable, describe that pad and its replacement condition separately from the supporting finger.

A transport rack introduces its own contact and restraint conditions. A carbon fiber component supported correctly in service may meet a small pad or a strap in a very different place during transport. Review that configuration separately from the operating assembly.

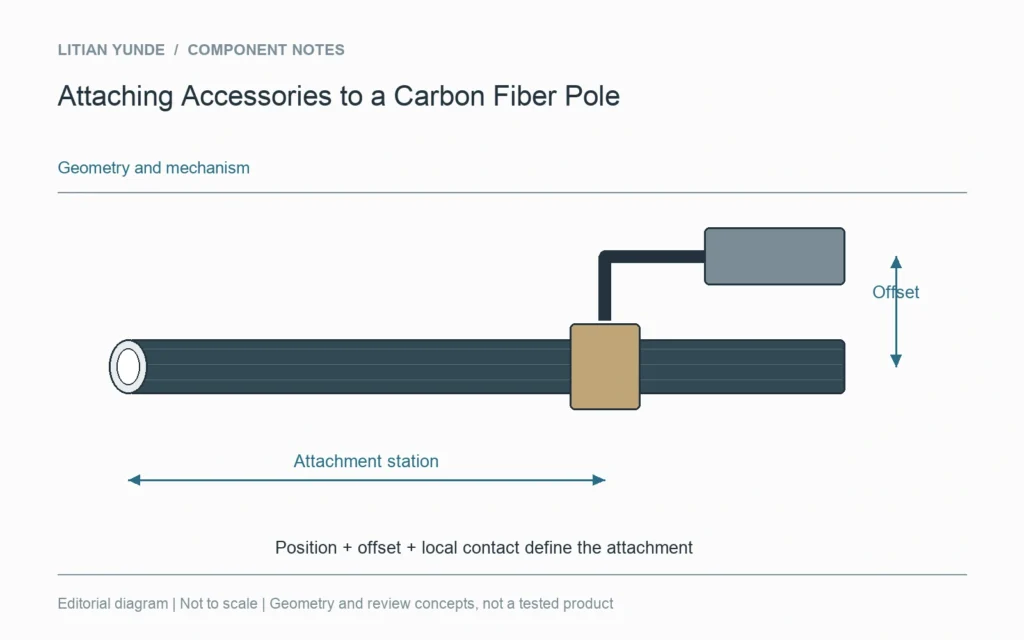

An accessory fitted to a long pole adds more than its own weight. Its position, offset and contact with the pole affect the assembled tool. Start with the complete configuration before selecting an attachment method for the carbon fiber member.

An edge guard is another component in a paddle assembly, not merely a finishing detail. It changes the outside outline and may add local thickness and mass. Review it with the blade construction and finished product geometry rather than specifying the carbon face alone.

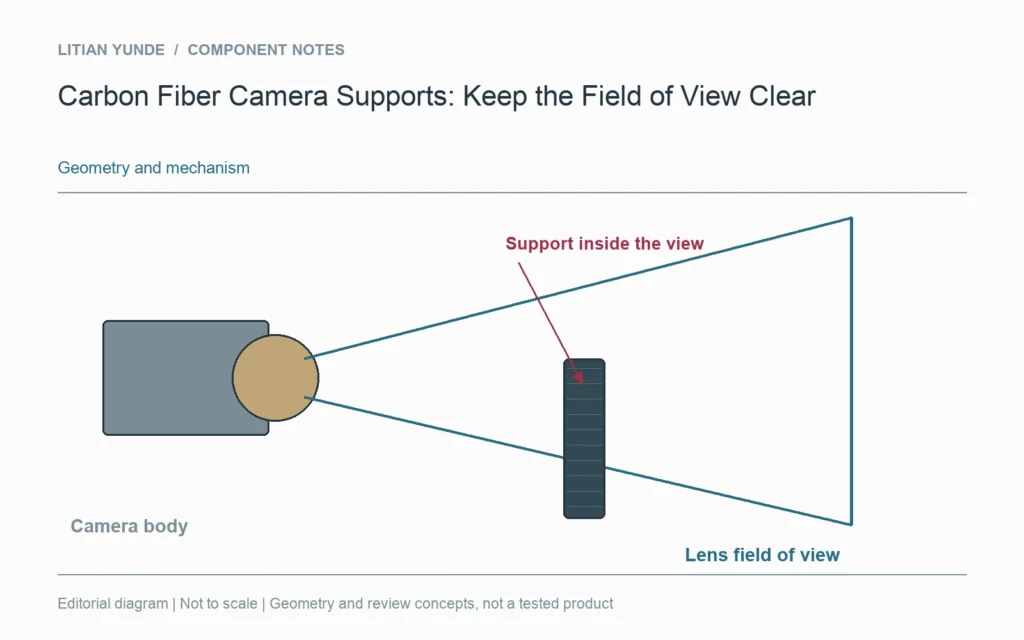

A camera support can hold the camera in the right place and still appear in the image. Before refining a carbon fiber bracket or support arm, check the lens field of view together with the physical space used by the camera and its attachments.

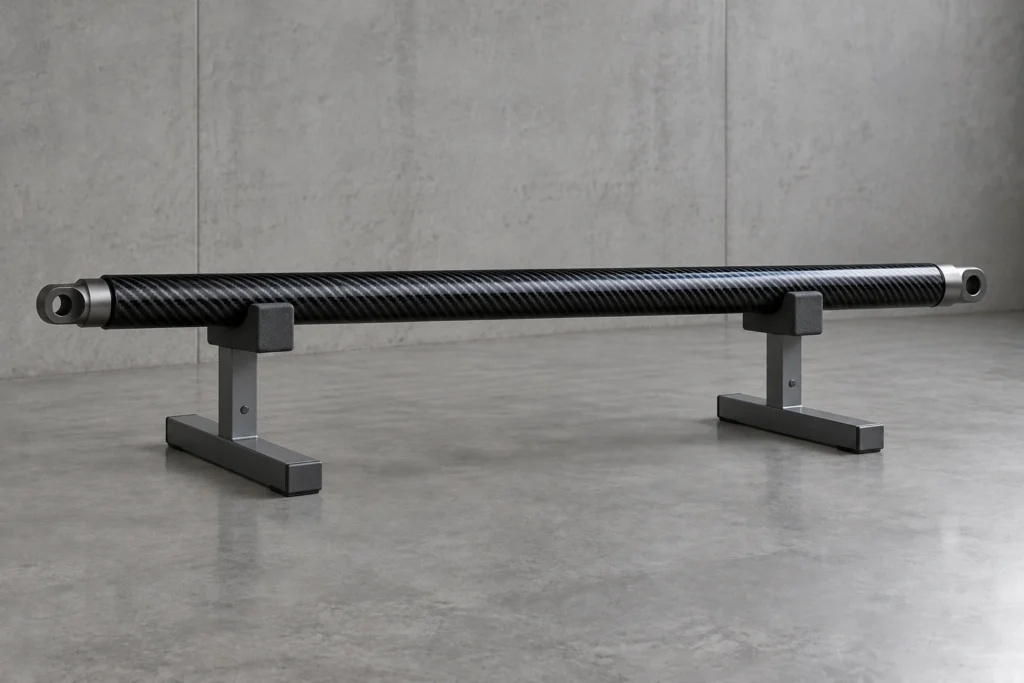

Long carbon fiber parts need a documented storage and handling arrangement appropriate to their construction and use. Agree support locations, separation and access before delivery. A storage rack is not automatically an inspection fixture, and a part’s appearance on the rack should not become an unsupported geometry or damage conclusion.

Vent slots define an opening geometry, not a verified cooling performance. Review the heat sources, airflow route, installed orientation and nearby components before approving a ventilated carbon fiber cover. Keep vent dimensions and any thermal test result as separate requirements for the specific completed configuration.
