Materials & Laminates

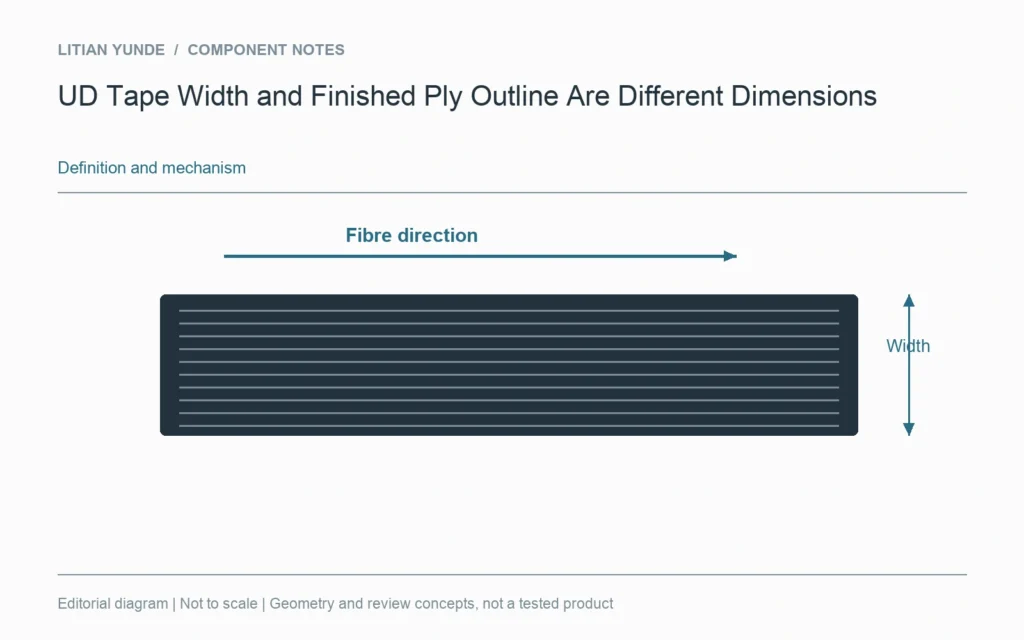

The width of a unidirectional tape is a material-supply dimension. The outline of a finished cut ply describes a layer prepared for a particular component. Specify which one an enquiry or drawing refers to before comparing dimensions and quantities.

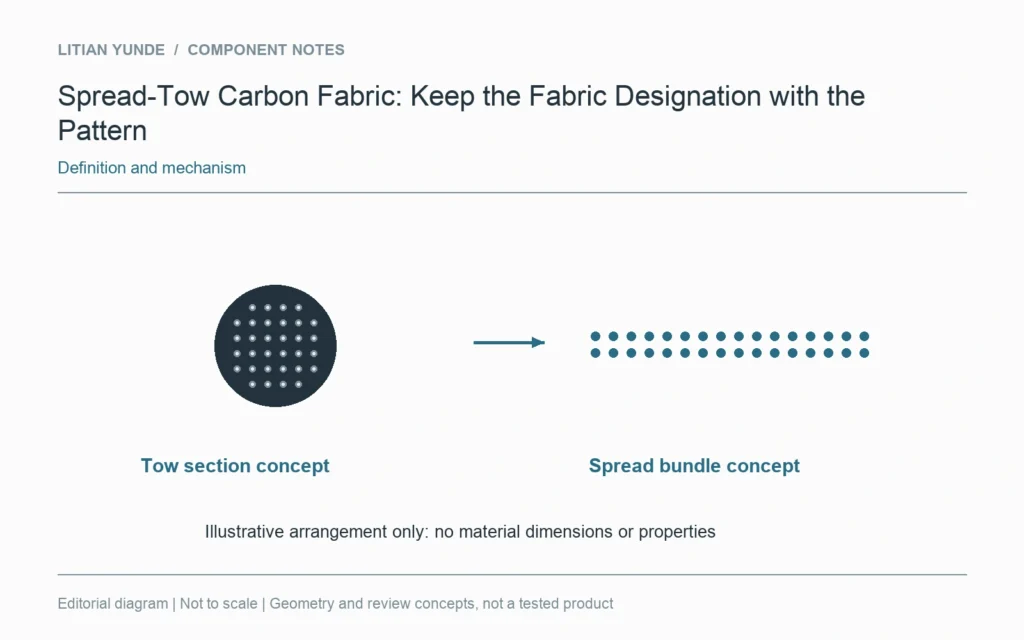

Spread-tow fabric uses spread fibre bundles in its reinforcement construction. A wide, flat-looking pattern can help discuss appearance, but the fabric designation still needs to identify the actual product. Do not infer the complete laminate from that pattern.

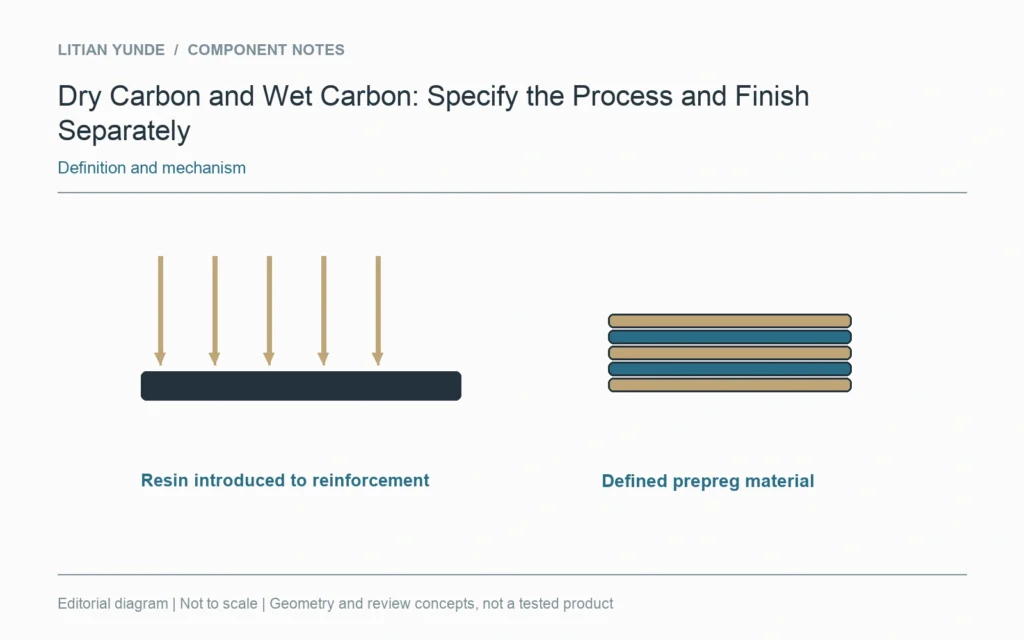

“Dry carbon” and “wet carbon” are insufficient purchase specifications on their own. Ask what manufacturing route and laminate construction the supplier proposes, then state the required surface finish separately. Appearance does not establish the processing history of a finished part.

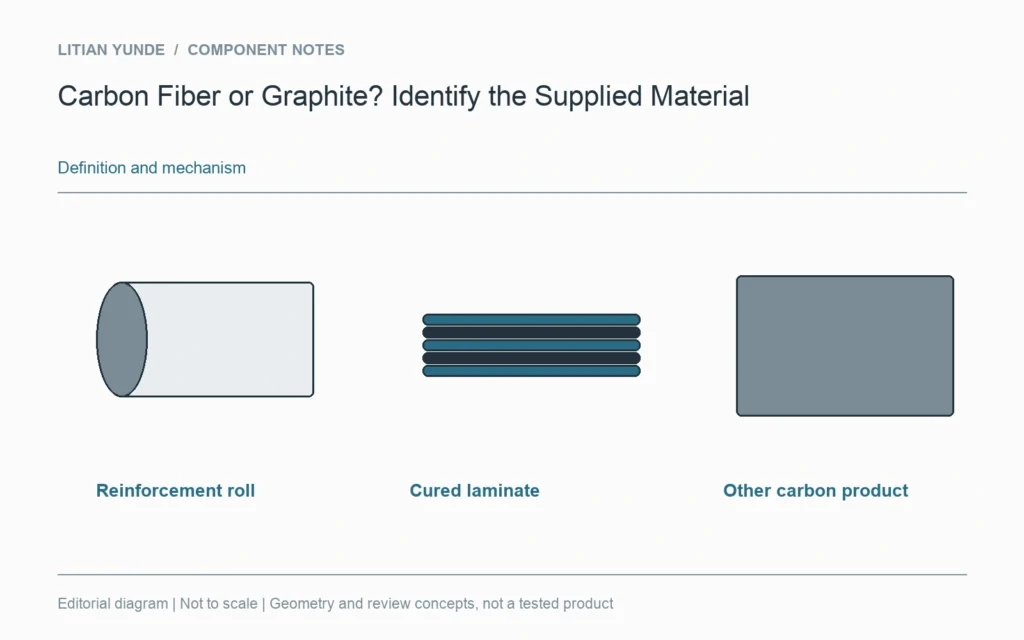

An enquiry that uses “carbon” and “graphite” interchangeably can leave the supplied material unclear. Identify whether the order concerns reinforcement, a polymer-matrix laminate or a different carbon-based product. A familiar trade description is not a complete material definition.

A hybrid reinforcement contains more than one fibre type in its defined construction. A contrasting surface pattern does not establish which fibres are present, where they occur or what properties the finished part has. Ask for the material description before assigning a performance meaning to the appearance.

Plain and twill identify weave constructions, not complete carbon fiber component specifications. Their visible patterns can help an appearance discussion, but a fabric choice also needs its product designation and the rest of the laminate definition.

Unidirectional reinforcement and woven fabric arrange fibres differently. Selecting either form changes the laminate description; it is not simply a choice between two surface patterns. Identify the complete construction before comparing a panel or tube proposal.

A strength result for an unnotched coupon does not directly establish the strength of a laminate containing a hole. Open-hole tests examine a defined specimen with a defined opening and loading condition. Keep those results separate when reviewing material information.

Tensile modulus and flexural modulus come from different loading arrangements. A carbon fiber datasheet should retain those labels, the laminate direction and the test method. Similar units do not make the reported values interchangeable.

A resin’s glass transition temperature describes a material transition under a particular measurement method. It is not, by itself, the temperature rating of a finished carbon fiber component. An operating requirement needs the load, exposure and complete construction as well as the material data.

Symmetric and balanced describe different aspects of a laminate. Symmetry concerns the arrangement about the laminate mid-plane. Balance concerns matching positive and negative angle plies under the relevant material and thickness assumptions. One word does not automatically imply the other.

A ply angle only makes sense relative to an identified direction. In a laminate definition, 0°, 90° and ±45° describe orientations measured from that reference. They are not universal directions built into a finished component or a photograph of its weave.
