Carbon fiber bicycle rim references.
For a carbon fiber rim, identify the intended wheel build before comparing a product image or quoted mass. A rim is one component of a system that includes the tyre, spokes, hub and braking arrangement.
State the configuration being reviewed
Give the rim size and the intended tyre and wheel components, together with the relevant manufacturer compatibility requirements. Distinguish a bare rim enquiry from a complete wheel enquiry. Do not treat a similar-looking rim profile as evidence of compatibility.
Request the applicable product documentation
Ask for the information and validation covering the offered configuration, including any installation and use limits provided by the manufacturer. Keep those documents linked to the product revision. A catalogue image does not establish a pressure limit, rider-load limit or suitability for a particular brake system.
Example scenario
A rim photograph shows the expected profile, but the tyre configuration and applicable limits are not identified. Request the product documentation for the exact offered rim before specifying a wheel build. Do not derive compatibility from appearance alone.

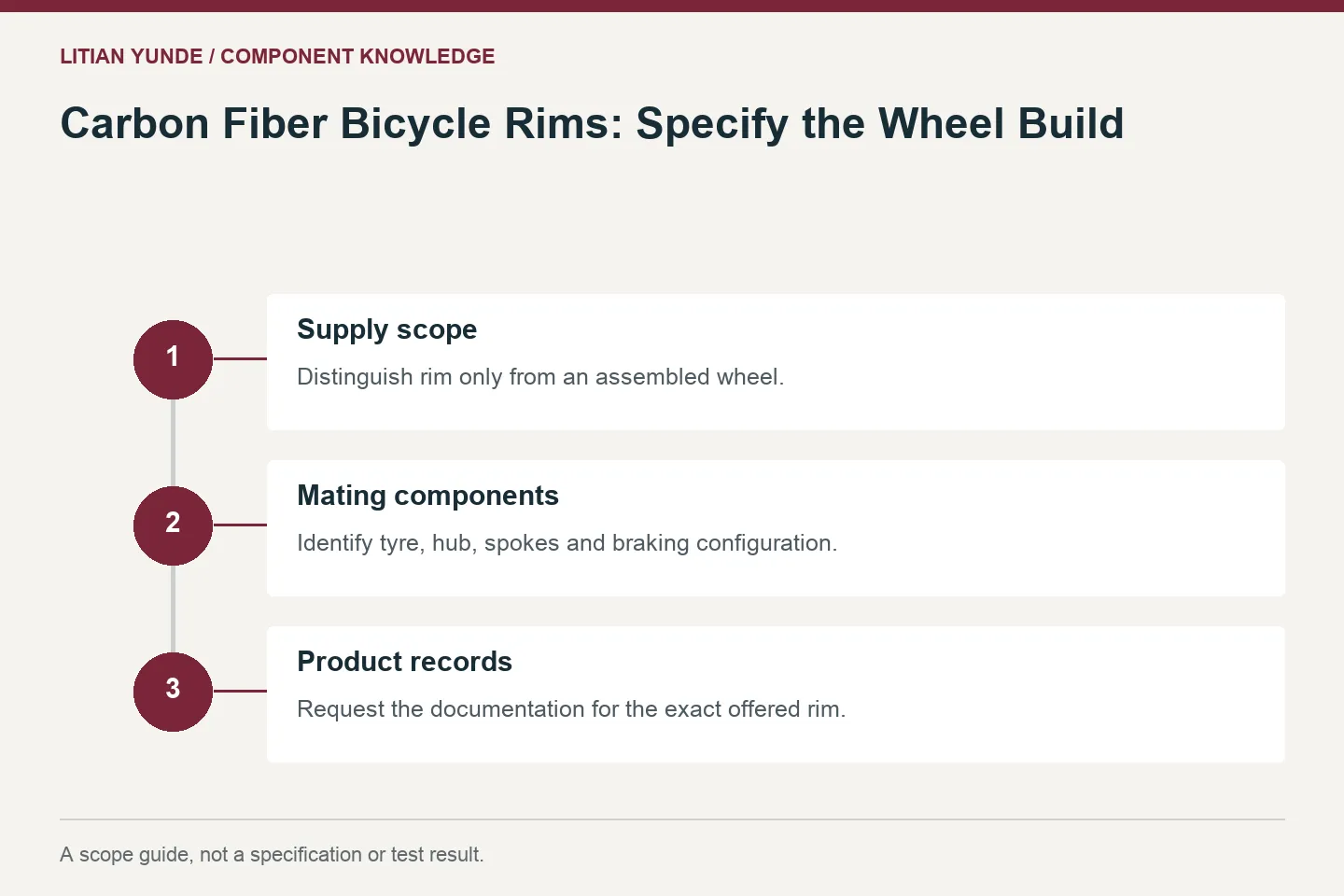

Points to record
| Supply scope | Distinguish rim only from an assembled wheel. |
|---|---|
| Mating components | Identify tyre, hub, spokes and braking configuration. |
| Product records | Request the documentation for the exact offered rim. |
Related reading
- Carbon Fiber Bicycle Components: Read Weight Listings Carefully
- Checking a Carbon Fiber Supplier Certificate: Read the Scope
Background reference: Gurit — Composite Materials.
