An accessory fitted to a long pole adds more than its own weight. Its position, offset and contact with the pole affect the assembled tool. Start with the complete configuration before selecting an attachment method for the carbon fiber member.

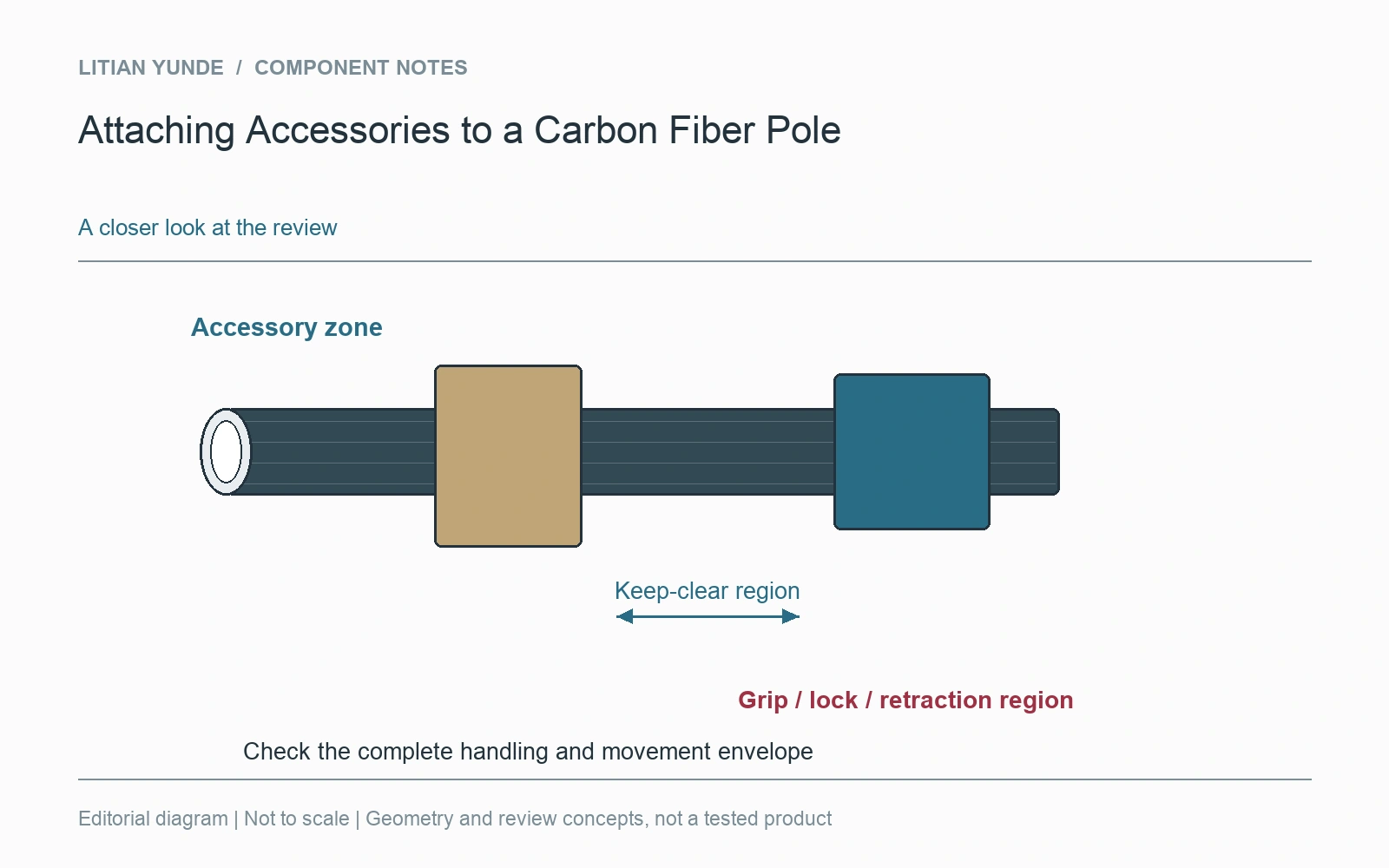

Show the accessory location along the pole and its distance from the pole axis. A compact attachment close to the axis and an offset attachment have different load paths, even at the same mass. Include the ways the assembly will be carried, extended or moved. For telescoping designs, check that the accessory does not interfere with retraction or the locking region.
Use an attachment intended for the actual interface
A matching sleeve, engineered collar or dedicated end fitting can offer different routes. Each needs review against the local section and construction. Avoid drilling an existing pole or applying a universal clamp force simply because a bracket fits geometrically. The purchased member may not have been designed for that local attachment.
Handling space is easy to overlook
Check hand positions, nearby cables and clearances during use and storage. An attachment can obstruct a grip or become the first feature to contact a support. These issues can be reviewed from a simple assembly layout before a sample is made. Mark any contact zones that are reserved for a particular fitting so they are not treated as general-purpose mounting regions.
The finished application controls acceptance
Give the supplier the assembly sketch, intended use and the relevant loads or performance requirements established for that use. For safety-critical or rescue applications, the finished equipment requires the applicable engineering assessment and approval; a carbon tube enquiry cannot supply that approval. Keep the component supply scope separate from the qualification of the complete tool.
