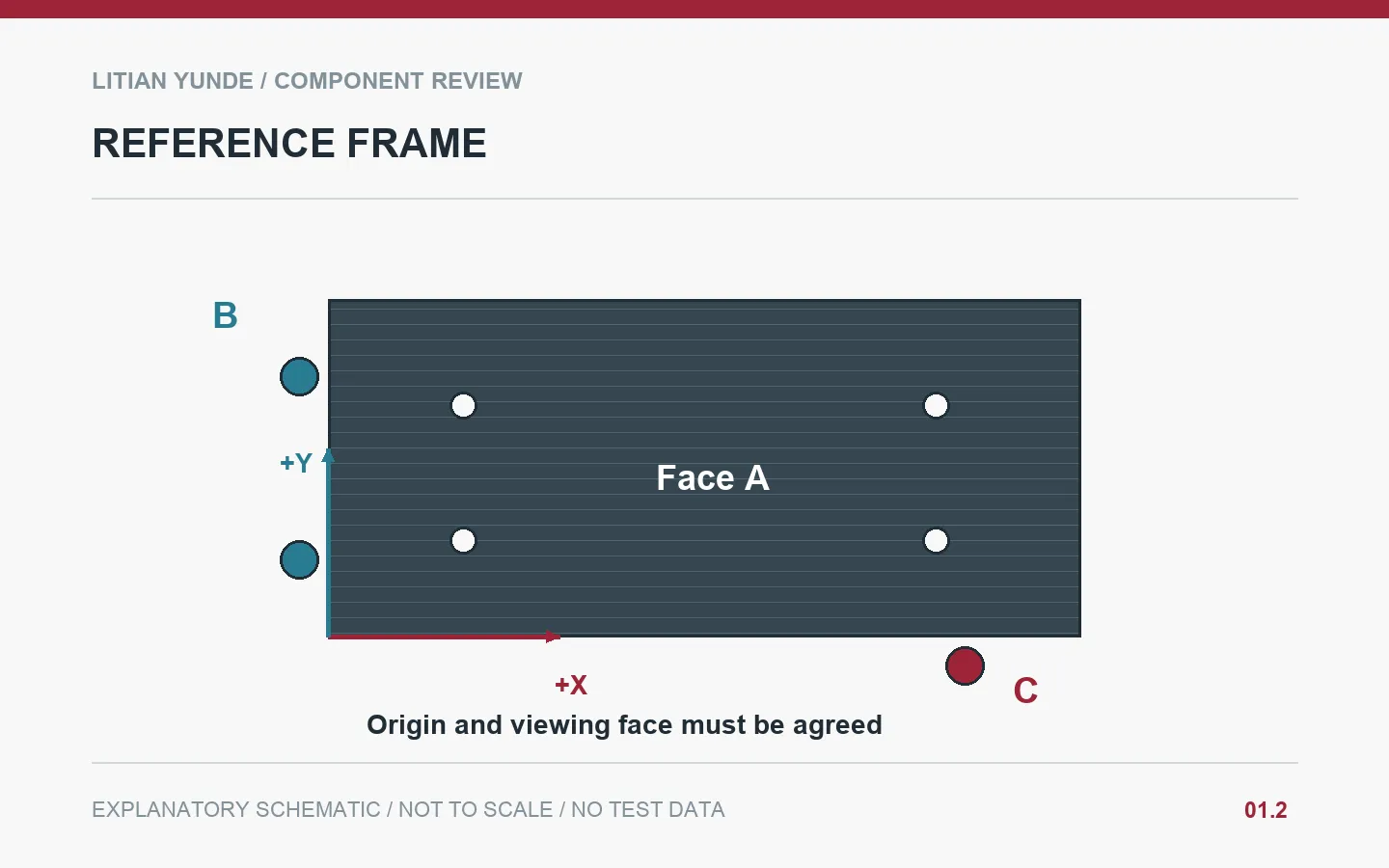

AI-generated explanatory concept; not a Litian Yunde product photograph or a validated design.
Un informe sobre la posición de los orificios solo tiene sentido cuando el sistema de referencia está bien definido. En el caso de una placa de fibra de carbono, hay que identificar la cara de referencia, los bordes o orificios de referencia y las condiciones de inspección. Dos equipos pueden medir la misma pieza y obtener coordenadas diferentes si establecen orígenes distintos o giran la pieza de forma diferente.
Choose references that belong to the assembly
Start with how the plate is located in the finished assembly. A supporting face, a locating hole and a secondary feature may matter more than the outside perimeter. A trimmed edge is not automatically a suitable reference merely because it is easy to touch with a probe. Show the intended references on the drawing and ask the person responsible for dimensional requirements to approve the datum scheme. Keep appearance features and functional references distinct.
Describe seating without changing the part
State whether the plate is free, supported or restrained during the check. A flexible plate pulled flat by inspection clamps can give a different result from a loose plate. Define permitted contacts and their sequence; avoid relying on an operator to press the part into position until the numbers look acceptable. If a support scheme is used, its geometry should be documented. A concept image is not an approved fixture design.
Send a coordinate map with the result
Include the origin, positive axis directions, viewing side, units and feature identifiers in the report. Mark which face is upward. A mirrored coordinate map can make a correctly made part look wrong when comparing left and right versions. Ask for the actual measured values against the named drawing features, with the measurement method and relevant uncertainty or decision rule, rather than a spreadsheet containing unexplained X and Y columns.
Example: the same four-hole plate, two origins
A buyer measures the holes from the outside corner; a supplier measures from a locating hole used in the assembly. Before changing the plate, the teams review the reference scheme and repeat the comparison in one agreed system. If the differences remain, they investigate the part against the drawing. They do not shift the origin after measurement simply to produce a pass.
Illustrative scenario, not a customer case or reported production result.
Details to agree before ordering
| Artículo de reseña | Record to agree |
|---|---|
| References | Datum features and their order. |
| Condition | Face upward, supports and permitted restraint. |
| Coordinates | Origin, axis signs, units and feature IDs. |
| Acceptance | Method, limit and applicable decision rule. |
Questions buyers ask
Can any machined edge be a datum?
Only if the drawing and inspection plan designate it for that purpose. Accessibility alone does not make it functionally suitable.
Does a changed origin fix an out-of-position hole?
No. It changes the reporting system. Conformance must still be assessed against the approved reference scheme.
Technical background and related reading
Background resource: NPL: Fundamental Good Practice in Dimensional Metrology. Background reading only; the project checklist is editorial guidance, and this reference does not establish supplier certification or part approval.
